Technical Specifications

Mechanical

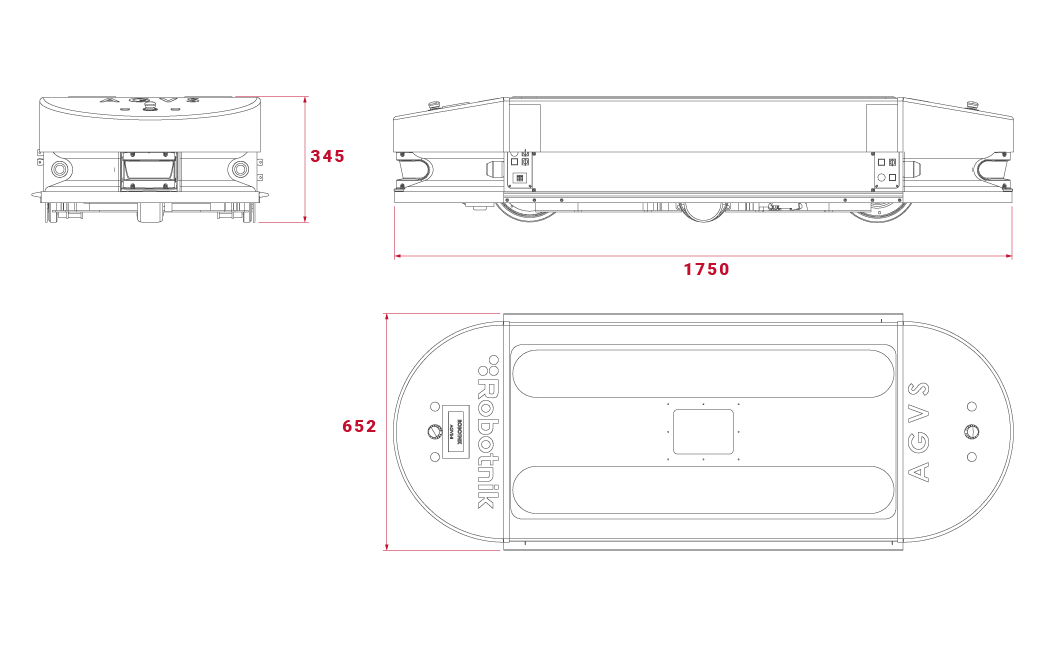

• Dimensions: 1750 x 652 x 345 mm
• Weight: 250 Kg
• Load capacity: 500 Kg
• Speed: 1,25 m/s
• Enclosureclass: IP43
• Motors: Traction: 500 W, Direction: 60 W
• Autonomy: 8 hours continuous motion
• Batteries: LiFeP04 100 Ah@24V
• Temperature range: +5degC to +50degC
• Max. Slop 5%

Control

• Controller: Open architecture ROS Embedded PC with Linux
• Communication: Ethernet / Wifi
• Connectivity:  Ethernet, USB External Ports,  HDMI

Fleet Contron & Monitoring (Optional)

• HMI extension: SCADA motoring and based control in Linux

Sensors

• Safety laser: SICK 3000 (one front and one rear)
