Technical Specifications

Mechanical

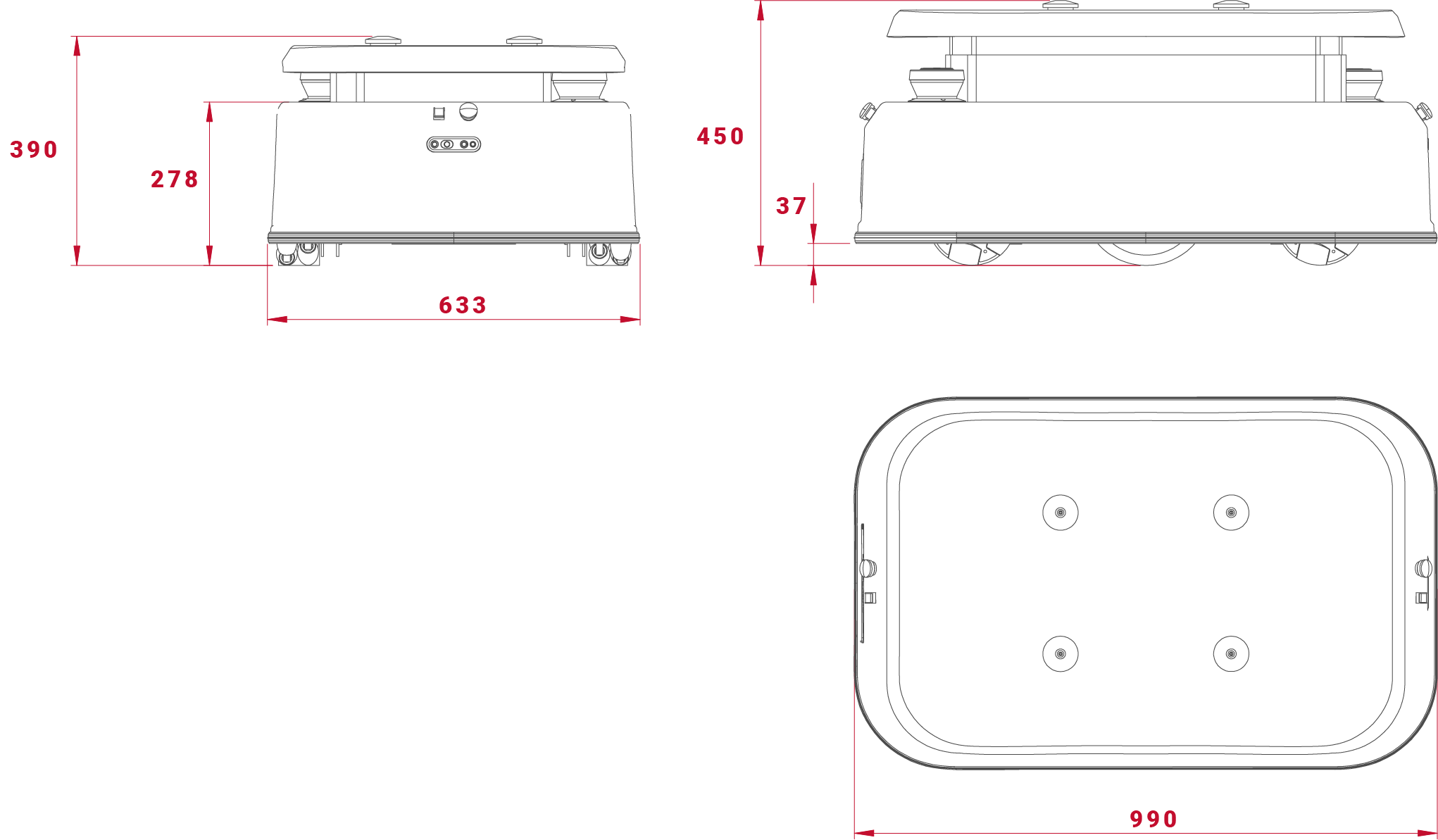

• Dimensions: 900 x 633 x 390 mm
• Weight: 110 Kg
• Load capacity: 200 Kg
• Speed: 1,7 m/s
• Enclosureclass: IP54
• Autonomy: Over 10 hours continuous motion
• Batteries: LiFeP03 15Ah@48V - Optional: LiFeP0 30Ah@48V or 40AH@28V
• Traction motors: 2 x 1.000 W
• Temperature range: 0degC to +45degC
• Lifting unit: 50mm
• Max. Slop 20%

PC

• Processor: 7th generation Intel i5
• Ram: 8Gb
• Hard Drive: SSD 120Gb

Control

• Controller: Open architecture ROS Embedded PC with Linux
• Communication: WiFi 802.11n
• Connectivity:  Ethernet, USB External Ports,  HDMI
